Brand New 230 Watt Micro ATX / SFX Power Supply for HP Compaq eMachine ATX100-5

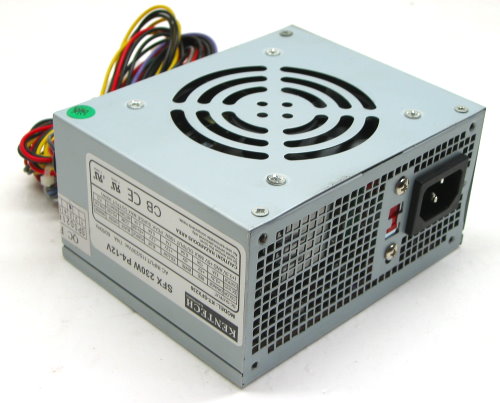

230 Watt Micro ATX / SFX Power Supply for HP Compaq eMachine ATX100-5, ATX-1523D - Click to enlarge
230 Watt Micro ATX / SFX Power Supply for HP Compaq eMachine ATX100-5, ATX-1523D - Click to enlarge
Product #: SFX230-A
Availability: Usually ships the next business day
Regular price: $39.99
Sale price: $29.99
You Save: $10.00 (25%)
Free Shipping
Quantity:


Share |

FEATURES

  • 230 watts maximum output
  • Single ball bearing fan design
  • Built-in voltage overload protection
  • Support Intel "Pentium 4" and AMD "Athlon XP"
  • Complies with Intel SFX12V specification

SPEC
Type SFX / Micro ATX
Maximum Power  230 Watt
Fans 1
Dimension 4"(D) x 5"(W) x 2 1/2"(H)
Main Connector




(P9- 3 pin replaced by AFC*)
20-pin x1 P4 4pin x1 Floppy 4 pin x1 Peripheral 4 pin x3 (P9- 3 pin replaced by AFC*)
*AFC, automatic fan speed control, an advance technology, will control the fan speed from the power supply automatically by sensing the system temperature. It replaces the traditional 3 pin fan speed connector function. you do not need a 3 pin connector to operate this power supply.
Hold-up Time 16ms minimum with full load 115 VAC/60 HZ
Efficiency > 70%
Over Voltage Protection +5V: 7V Max., +3.3V: 4.5V Max., +12V: 15.6V Max.
Input Voltage Manual Selectable (90Vac ~ 132Vac; 180Vac ~ 264Vac)
Input Frequency Range 47 - 63Hz
Output +3.3@10A, +5@18A, +12@7A, -12@0.8A, +5vsb@2A
MTBF >50,000 Hours (5 years & 7 months)
* Excludes the life of the fan
Approvals Noise Level Maximum of 32db at 100% system loading
Safety CB, CE, TUV, and FCC
ATX100-5 / ATX-151 / ATX1523D / ATX1523F / 0950-3602 / 0950-3657/ 0950-3746/ 5184-2191 / 5183-9078 / 0950-3646 / 0950-3994 / 5185-2003 / 5185-2917 / 5185-2974 /HP-K1363A3 / HP-K1603A3
Cross reference /compatibility

eMachine System (Fit all eMachine):
T Series
Ilssan ISP 120S /Ilssan ISP 120SI
eTower 266 /300 /300C /300K /333C /333CS /333K /333I /333ID /366I /366ID /366C /366IS /366I2 /400I2 /400ID /400IDX /400IX /400I /400I3
433I /466I /466ID /466IS /466IX /500I /500ID /500IDX /500IS /500IX /533ID /533IR /533I /533ID2 /566I /566I2 /566IRX /566IR
eMonster 500 /500A /550 /550R /600 /700 /800

Hewlett-Packard (HP) Systems:

Pavilion 510d / 510k /510t /4402 /4402H /4403 /4404  /4404H /4405 /4407 /4407H /4409 /4409H /4410 /4410H /4411 /4411H /4413 /4413H /4415 4416 /4420 /4416H /4422 /4422H /4430 /4433 /4433 /4435 /4440 /4443 /4445 /4450 /4453 /4455 /4456 /4458 /4460 /4463 /4473 /4483 /4509 /4510 /4512 4515 /4530 /4533 /4535 /4536 /4540 /4550Z /4553Z /4563Z /510d /510k /510t /6506 /6508 /6511 /6615 /6532 /6535 /6540C /6545C /6553 /6563Z 6573Z /6623 /6633C /6640C /6643 /6646C /6648C /6653C /6657 /68XX /6913 /7842 /7800 CTO /7851 /7852 /7857 /7859 /7861 /7862 /7864 /7875 78XX Shell /7900 CTO /7920 /7931 /7932 /7939 /7940 /7941 /7947 /7953 /7957 /XT860 /XT865 /XT878 /XT936 /XT963 /9800 CTO /XE730 /XE743 XE839

Compaq systems:
Presario 5301 /5303 /5304 /5410 /5420 /5423 /5440 /5441 /5443 /5447 /5447 /5451 /5457 /5460 /5461 /5465 /7350 /7360
7370 /7922

Power Supply model #:
ATX100-5 / ATX-151 / ATX1523D / ATX1523F
HP 0950-3602 / HP 0950-3657/ HP 0950-3746/ HP5184-2191 /HP 5183-9078 / HP 0950-3646 /HP 0950-3994 / HP 5185-2003 /HP 5185-2917
HP 5185-2974  /HP-K1363A3 / HP-K1603A3 /HP D9287-6900
HPR1603A302 / HPR1603A302
Compaq spares 138652-001 /174048-001.
Liteon PS-5900-2/ D9287-69001
Enhance ENP-2120
Delta DPS-120AB-1 B/ Delta DPS-120AB/ Delta DPS-111AB A
Samsung SFX-10B C
High Power SFX230M2

note: we may not list all compatiable models. if your model number is not in the list please compare the diamension  & connectors with your orginal power
supply unit. in most case it will be the correct replacment/ upgrade power supply when both requirements match. if you are still not sure please email us for
more information.
